Engineering Overview

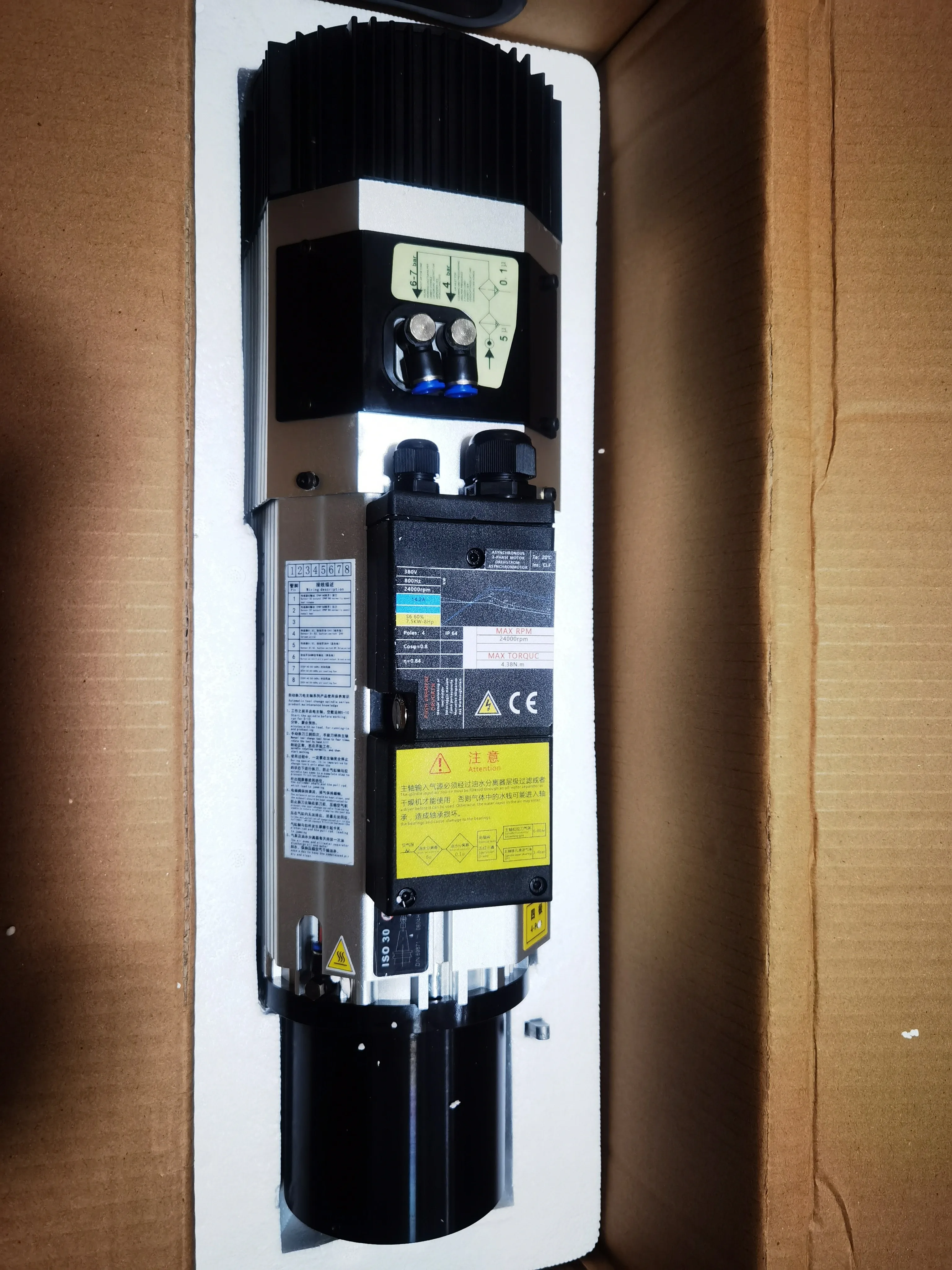

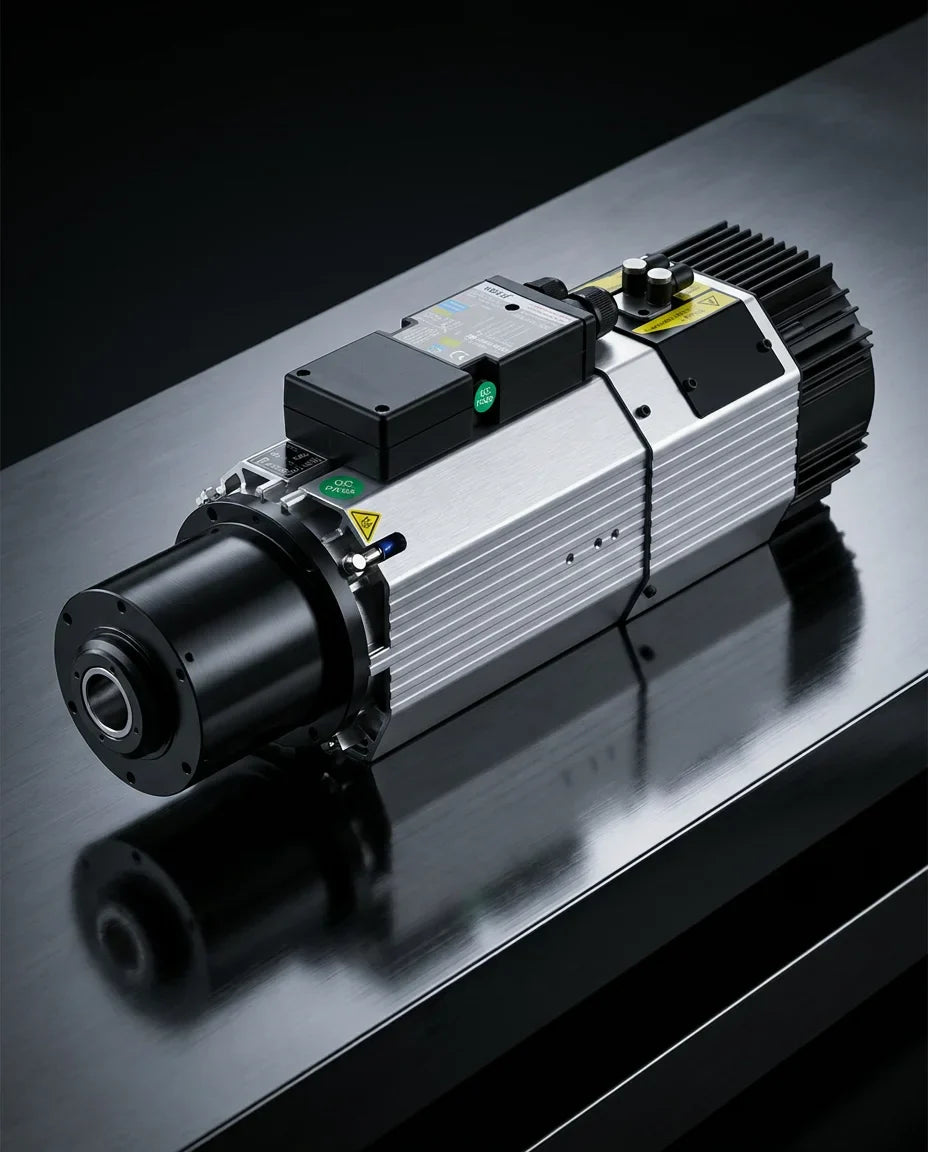

The Lingyu 9kW ISO30 ATC Spindle represents the pinnacle of asynchronous spindle technology, tailored for high-intensity 24/7 nesting operations.
Designed with sub-micron precision at its core, this unit solves the primary pain points of aerospace and high-end furniture OEMs: vibration-induced tool wear and thermal displacement. With a guaranteed TIR < 0.003mm, it delivers laboratory-grade accuracy in industrial environments.
02
Technical Specifications
| Rated Power | 9.0 kW (S1-100% Duty) |
|---|---|
| Rated Speed | 24,000 RPM (Constant Torque to 12k) |
| Runout (TIR) | < 0.003mm (Verified at Factory) |
| Dynamic Balance | G0.4 Grade (Advanced Calibration) |
| Bearing Configuration | 4x P4 High-Speed Hybrid Ceramic |
