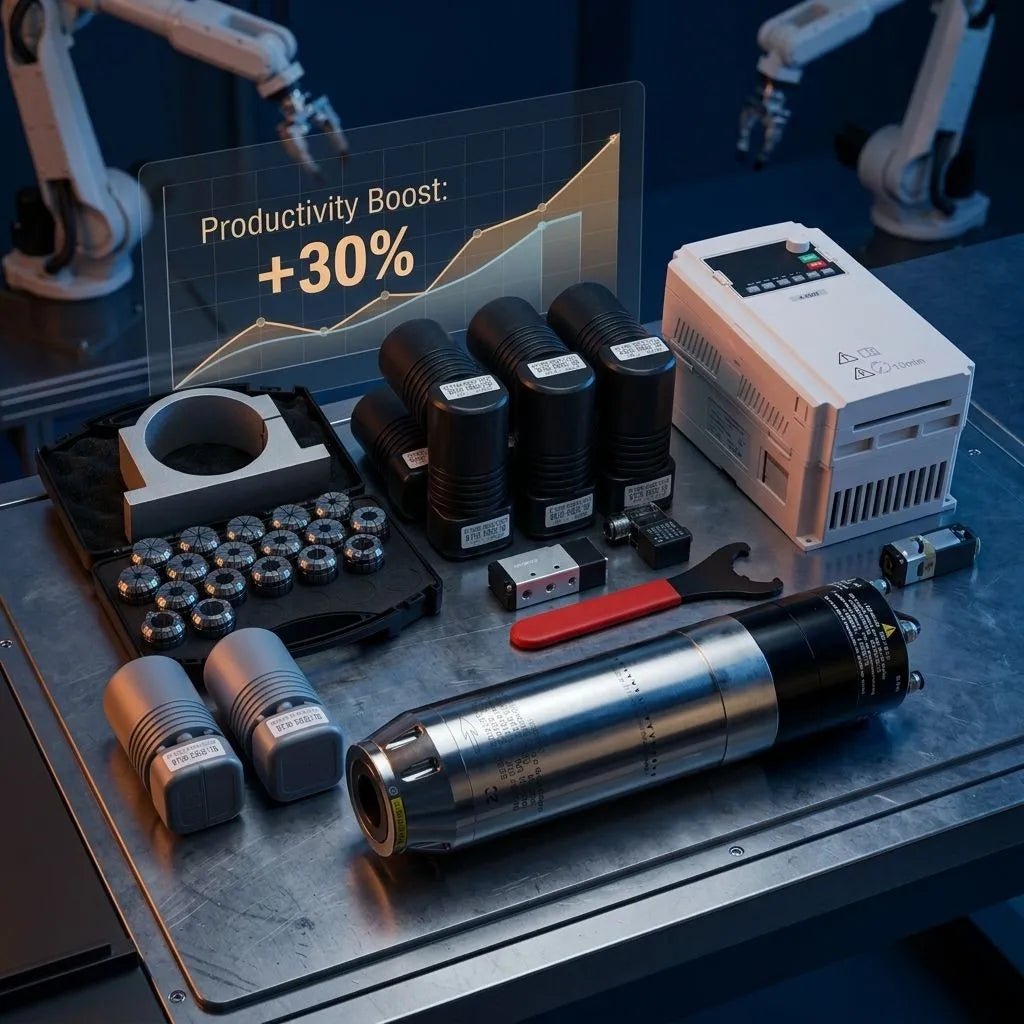

7.5kW BT30 ATC Spindle Motor - 18,000 RPM
Industrial power for heavy-duty aluminium and steel milling.
7.5 kW at 18,000 RPM trades top speed for torque, which is what deeper aluminium cuts and steel finishing need. It keeps the BT30 interface, so your existing holders and magazine stay in use.
Request a quotationSend your machine model, tool holder and voltage. We confirm the exact configuration before shipping.
Technical specifications
| Power | 7.5 kW |
|---|---|
| Speed | 18000 RPM |
| Tool interface | BT30 ATC |
| Accuracy (TIR) | < 0.003 mm |
| Cooling | Water cooled |
| Certification | CE / RoHS / ISO9001 |
Typical applications
- Aluminium moulds and plates with heavier radial cuts
- Steel and stainless finishing passes at moderate speed
- Continuous production runs where thermal stability matters
Confirmed before shipment
- Cut depth and material, so we can confirm the torque margin
- Cooling capacity for continuous 18,000 RPM operation
- BT30 holder set and pull-stud type
- VFD current headroom for the 7.5 kW rating
Frequently asked questions
Can I run steel with this spindle?
Light steel and stainless finishing works at reduced speed and depth. For regular steel removal, a BT40 with higher torque is the safer choice.
Why 18,000 RPM instead of 24,000?
A lower top speed allows a stiffer bearing arrangement and more torque at the low end, which is what heavier cuts need.
Is it a drop-in replacement for a 5.5 kW unit?
The BT30 interface matches mechanically, but check your VFD rating, cooling capacity and machine rigidity before swapping.
