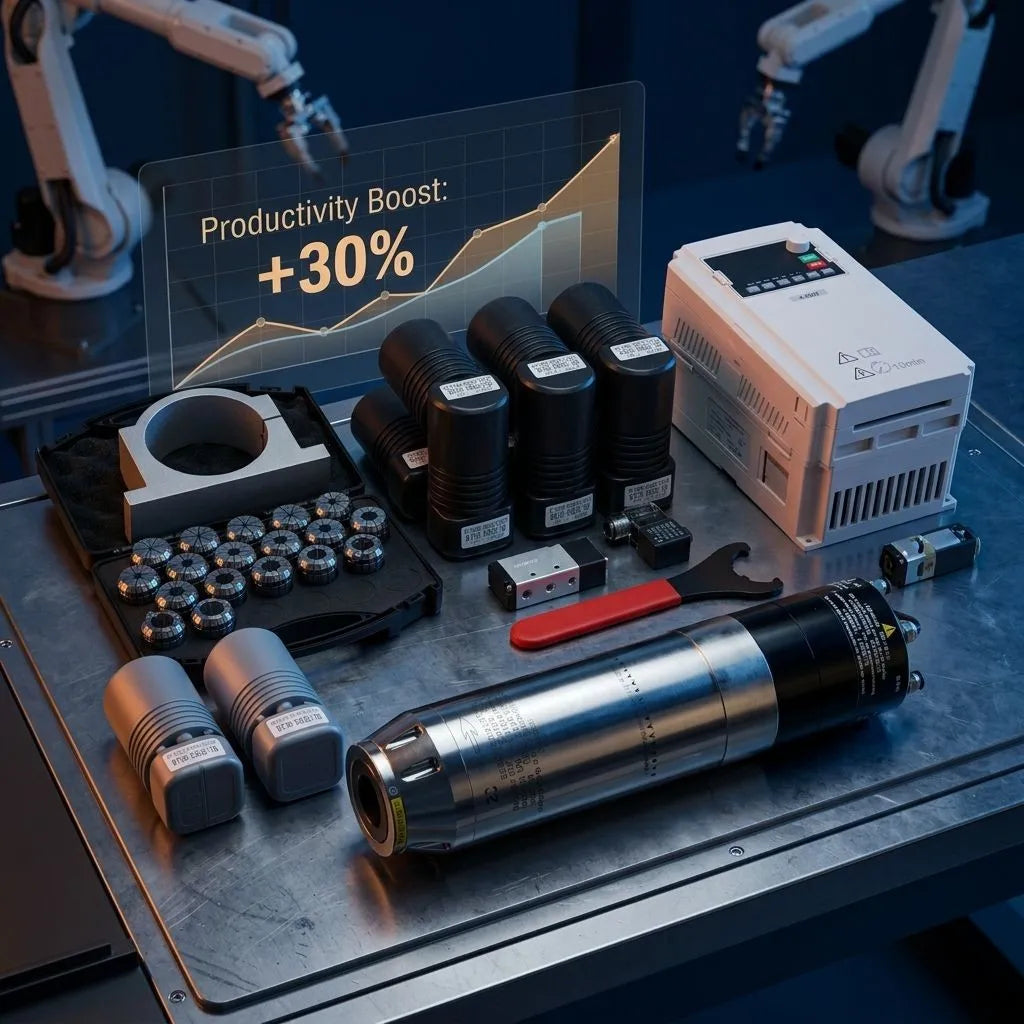

5.5kW BT30 ATC Spindle Motor - 24,000 RPM

The industrial benchmark for high-speed milling centres.

5.5 kW on a BT30 interface is the workhorse combination for aluminium, wood and composite milling. 24,000 RPM keeps small tools in their efficient range while the BT30 taper carries a full magazine of holders.

Request a quotation

Send your machine model, tool holder and voltage. We confirm the exact configuration before shipping.

5.5kW BT30 ATC Spindle Motor - 24,000 RPM

Technical specifications

Power5.5 kW
Speed24000 RPM
Tool interfaceBT30 ATC
Accuracy (TIR)< 0.003 mm
Bearings4 × P4 ceramic
CertificationCE / RoHS / ISO9001

Typical applications

  • Aluminium fixtures and parts with deeper radial cuts
  • Wood, MDF and composite panels on nesting centres
  • Mixed batches that need 12–20 tools in the magazine

Confirmed before shipment

  • BT30 holder set and pull-stud type (45° or 60°)
  • VFD rating and the spindle current at 220 V or 380 V
  • Chiller capacity and coolant flow at 24,000 RPM
  • Tool-change air pressure and the magazine interface on your machine

Frequently asked questions

BT30 or BT40 for aluminium?

BT30 covers most aluminium and wood work on compact and mid-size centres. Move to BT40 when you need heavier radial loads or steel.

Are the bearings serviceable in the field?

The 4 × P4 ceramic set is a factory-fit assembly. Field service is limited to grease interval checks; bearing replacement comes back to our workshop.

What documentation comes with the unit?

CE, RoHS and ISO9001 certificates, a test record with the measured TIR, and a wiring diagram for the VFD.
