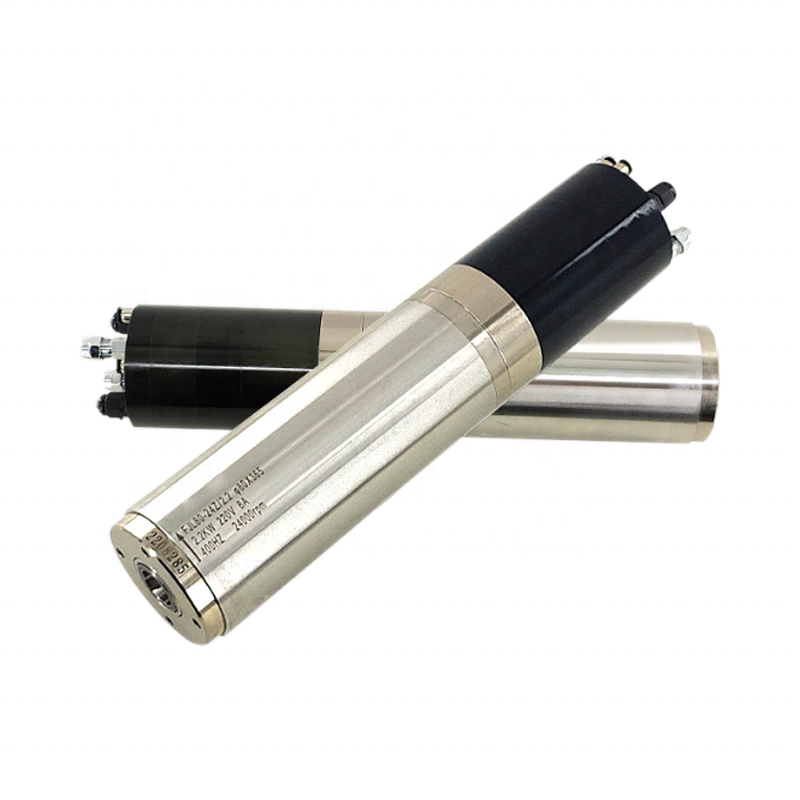

2.2kW ISO20 ATC Spindle Motor - 24,000 RPM

Ultra-precise 24,000 RPM spindle for jewellery, dental and small-part milling.

This 2.2 kW ISO20 spindle is built for compact machining centres that need fast tool changes in a small envelope. The 24,000 RPM top speed suits 0.5–3 mm cutters in wax, PMMA, zirconia and non-ferrous metals.

Request a quotation

Send your machine model, tool holder and voltage. We confirm the exact configuration before shipping.

2.2kW ISO20 ATC Spindle Motor - 24,000 RPM

Technical specifications

Power2.2 kW
Speed24000 RPM
Tool interfaceISO20 ATC
Accuracy (TIR)< 0.003 mm
Voltage220/380
CoolingWater cooled

Typical applications

  • Jewellery and dental CAD/CAM milling with 0.5–3 mm tools
  • Small aluminium and brass batches on compact gantry machines
  • Engraving and fine finishing where run-out shows in the surface

Confirmed before shipment

  • ISO20 holder set and the number of pockets on your magazine
  • Supply voltage 220 V or 380 V, and the VFD you plan to use
  • Coolant circuit flow rate, hose connection and pump placement
  • Drawbar or spring set, and the air pressure available on site

Frequently asked questions

Does the spindle come with a VFD and pump?

The base scope is the spindle only. VFD, pump, hoses and bracket are quoted as options, and the final configuration is fixed in the quotation.

Which materials can it cut at 24,000 RPM?

Wax, PMMA, zirconia, acrylic, brass and aluminium in light passes. For steel or deep cuts, move to a BT30 or BT40 spindle.

How is run-out verified before shipping?

Every unit runs on a test stand: TIR below 0.003 mm at the taper plus a 30-minute run-in at top speed. The record ships with the spindle.
