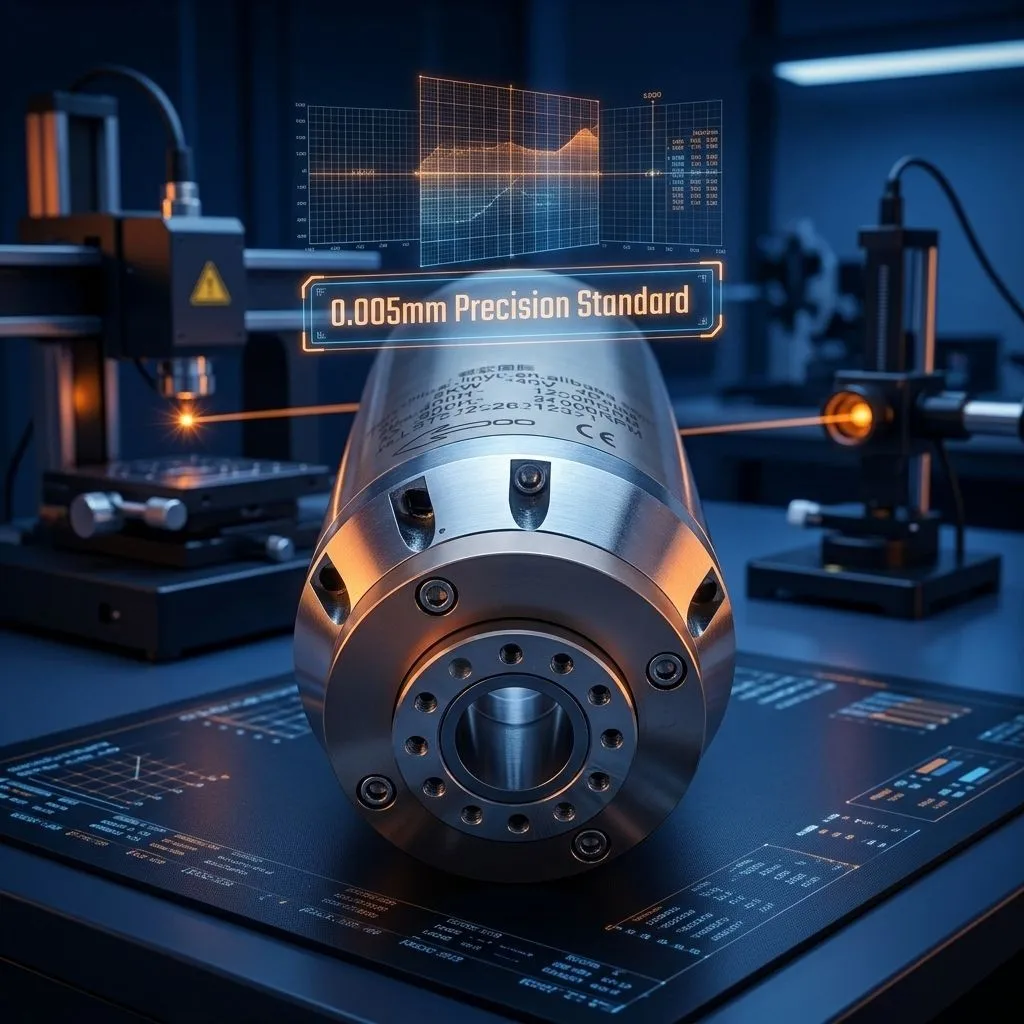

11kW BT40 ATC Spindle Motor - 12,000 RPM

The powerhouse for heavy-duty machining centres.

11 kW BT40 is the heavy end of the range: 12,000 RPM with enough torque for steel, cast iron and large aluminium parts. It suits gantry and bridge machines that need material removal rate more than spindle speed.

Request a quotation

Send your machine model, tool holder and voltage. We confirm the exact configuration before shipping.

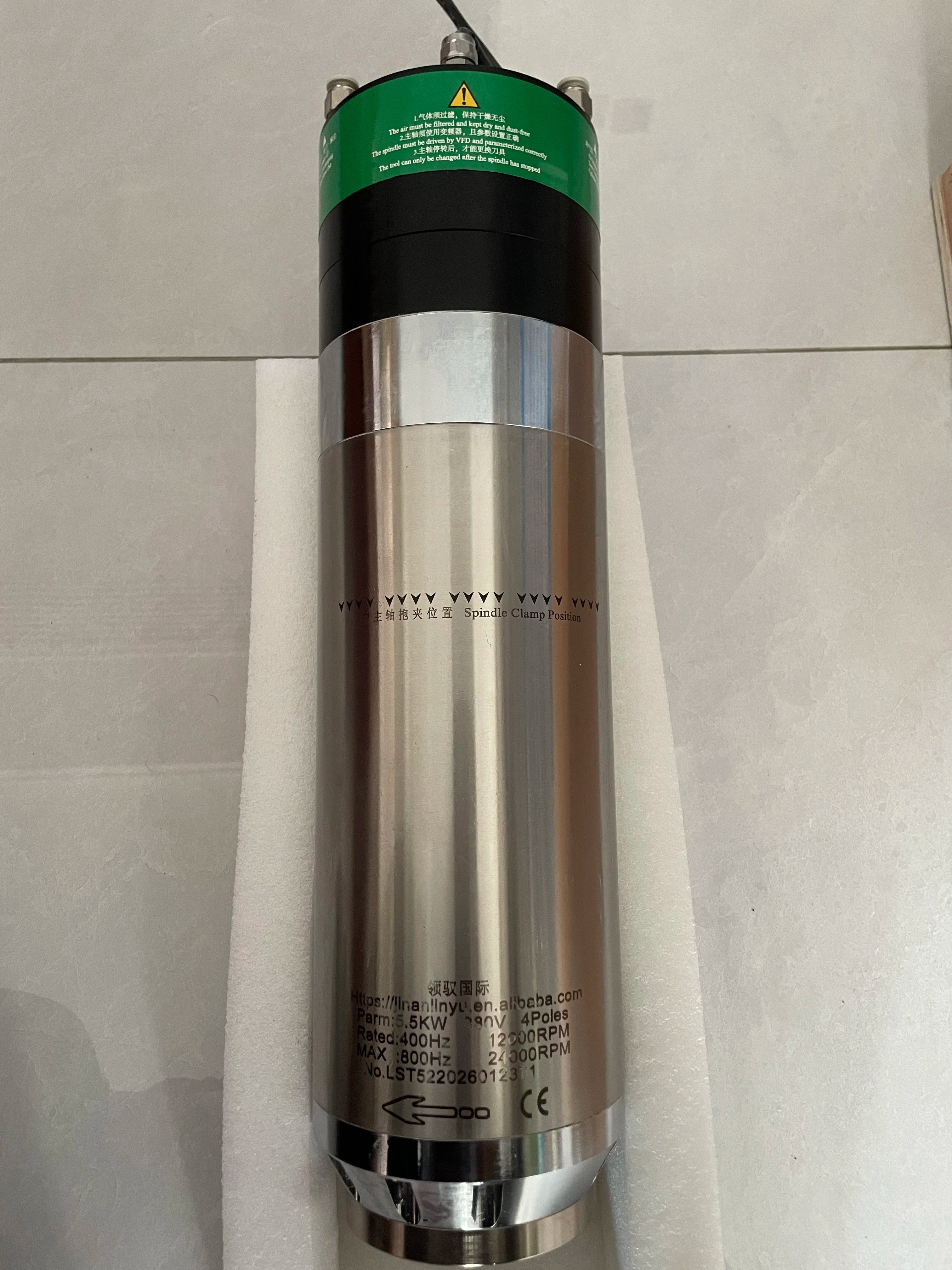

11kW BT40 ATC Spindle Motor - 12,000 RPM

Technical specifications

Power11 kW
Speed12000 RPM
Tool interfaceBT40 ATC
Accuracy (TIR)< 0.003 mm
BearingsP4 grade
CoolingWater cooled

Typical applications

  • Steel, cast iron and stainless parts with carbide tooling
  • Large aluminium plates and moulds on gantry machines
  • Heavy roughing and finishing in the same set-up

Confirmed before shipment

  • Cutting load and material, so we can confirm the torque curve
  • BT40 holder set, pull-stud and drawbar force
  • Chiller sizing and coolant flow at 12,000 RPM
  • Machine structure rigidity and axis thrust capacity

Frequently asked questions

Can it cut steel continuously?

Yes, at the rated depths for carbide tooling; the exact depth depends on machine rigidity and coolant. Send your cut data and we confirm the margin.

Why is top speed only 12,000 RPM?

A BT40 with a large bearing set trades speed for stiffness and torque, which is what heavy material removal needs.

What cooling do you recommend?

A chiller sized for continuous 11 kW operation, with flow verified at the spindle inlet. Undersized cooling is the most common cause of early bearing failure.
